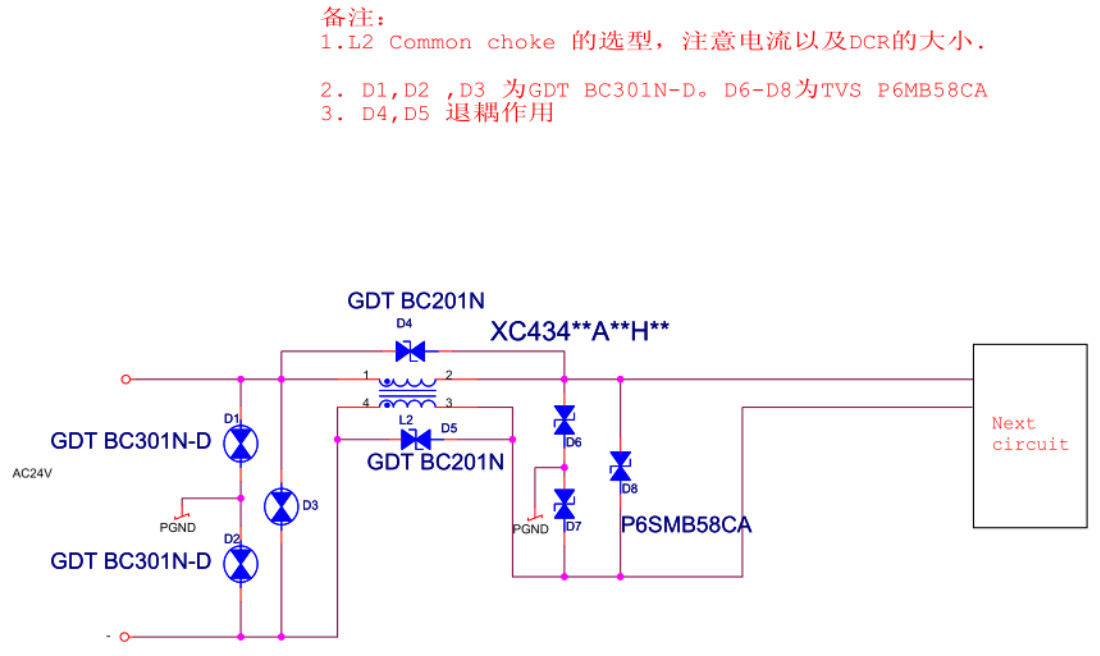

<p><strong>1、AC24V接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="235ca72a-b22a-4ea0-af8b-f574f34afbfa" height="487" src="/sites/default/files/inline-images/1_165.jpg" width="817" /></p>
<p><strong>2、AC110V-220VEMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="f63e4c67-1956-41bd-938a-6c678ce9b700" height="487" src="/sites/default/files/inline-images/2_162.jpg" width="817" /></p>

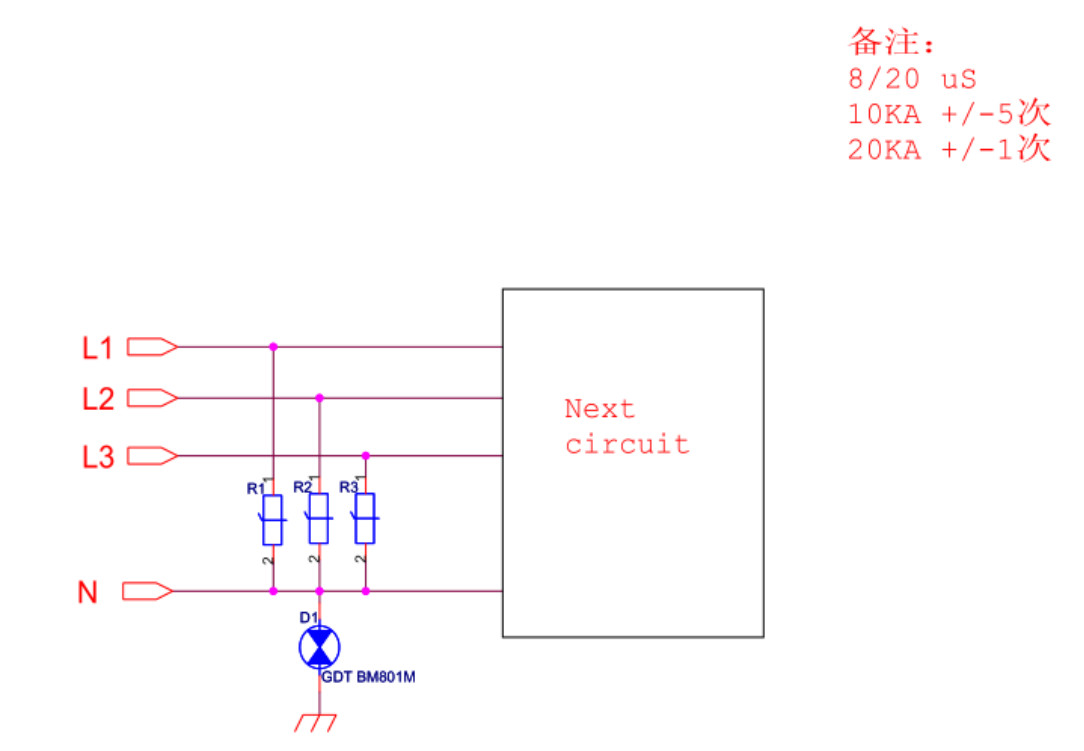

<p><strong>3、AC380V接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="b3898f13-6077-40b3-a36c-9ebdab32dbb6" height="487" src="/sites/default/files/inline-images/3_146.jpg" width="817" /></p>
<p><strong>4、AV接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="c26a4c89-0901-4eba-8c01-075ef1aaad2d" height="487" src="/sites/default/files/inline-images/4_124.jpg" width="817" /></p>

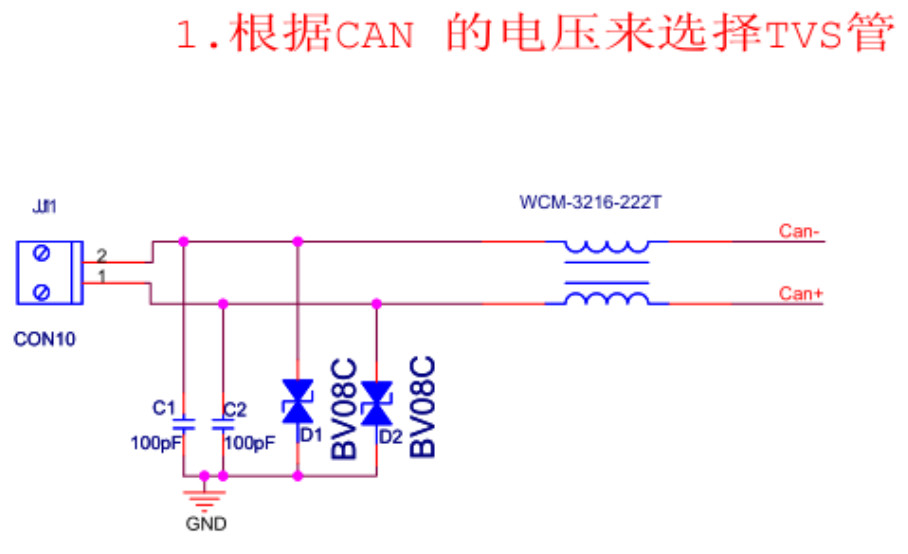

<p><strong>5、CAN接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="c00e1a1b-c4e4-4091-9d93-c242bd729fd3" height="487" src="/sites/default/files/inline-images/5_112.jpg" width="817" /></p>

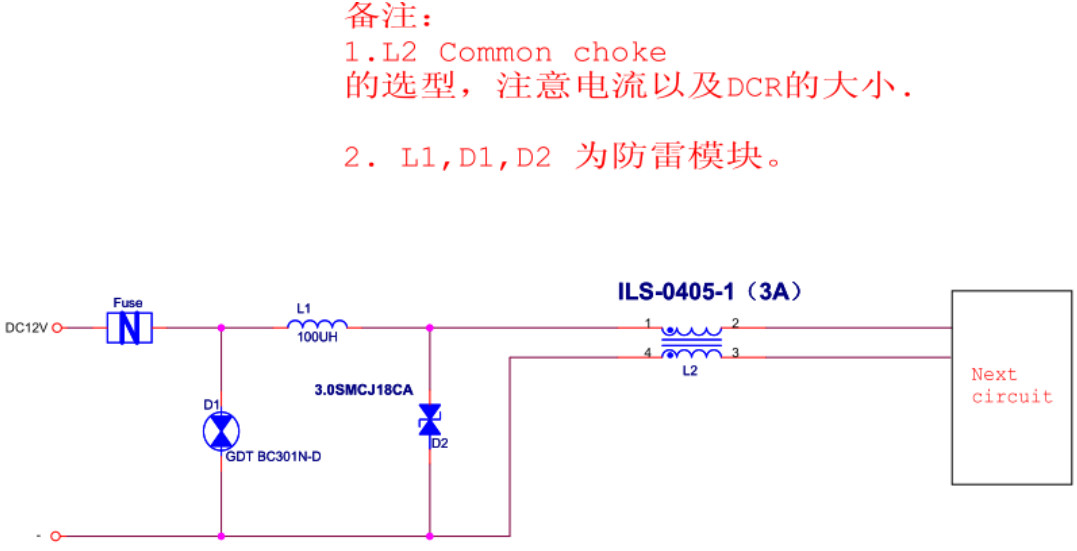

<p><strong>6、DC12V接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="7f648705-d0d1-4f6e-b331-24750495daef" height="487" src="/sites/default/files/inline-images/6_94.jpg" width="817" /></p>

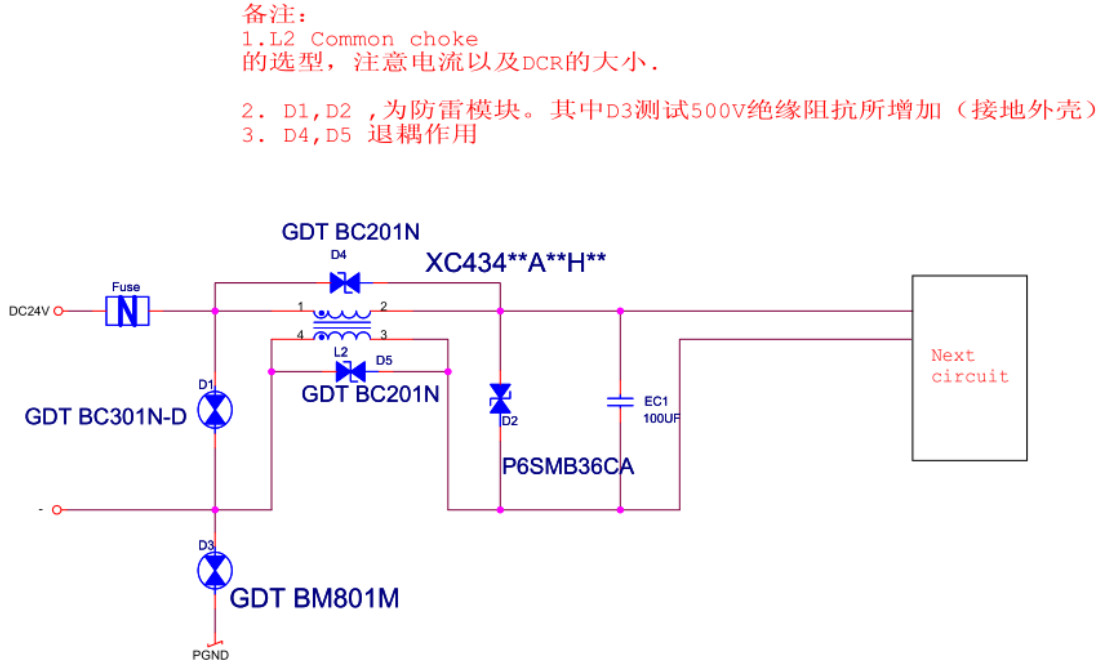

<p><strong>7、DC24V接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="4720dd51-8d52-4a3f-958a-647ba6de0b7d" height="487" src="/sites/default/files/inline-images/7_78.jpg" width="817" /></p>

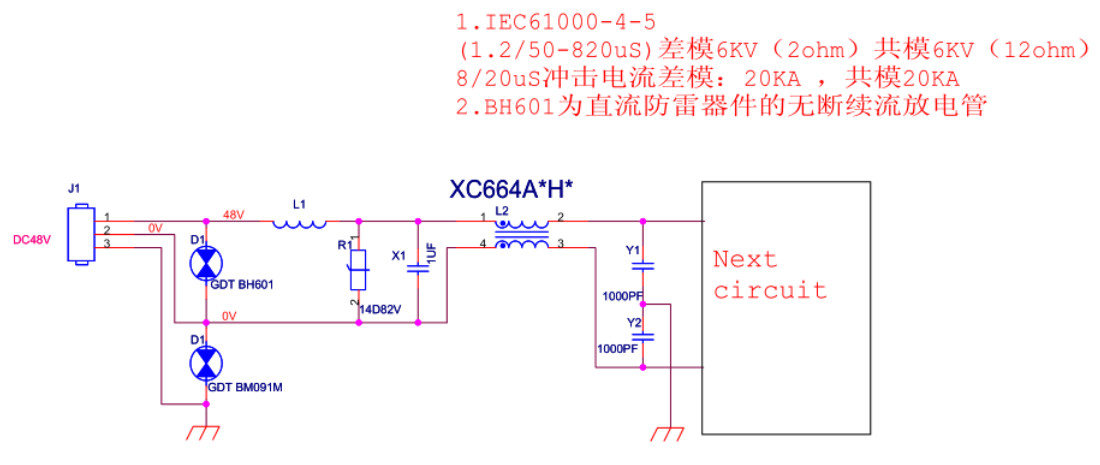

<p><strong>8、DC48接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="474f0658-612c-4fc2-89d3-1a67e6ab0aa0" height="487" src="/sites/default/files/inline-images/8_60.jpg" width="817" /></p>

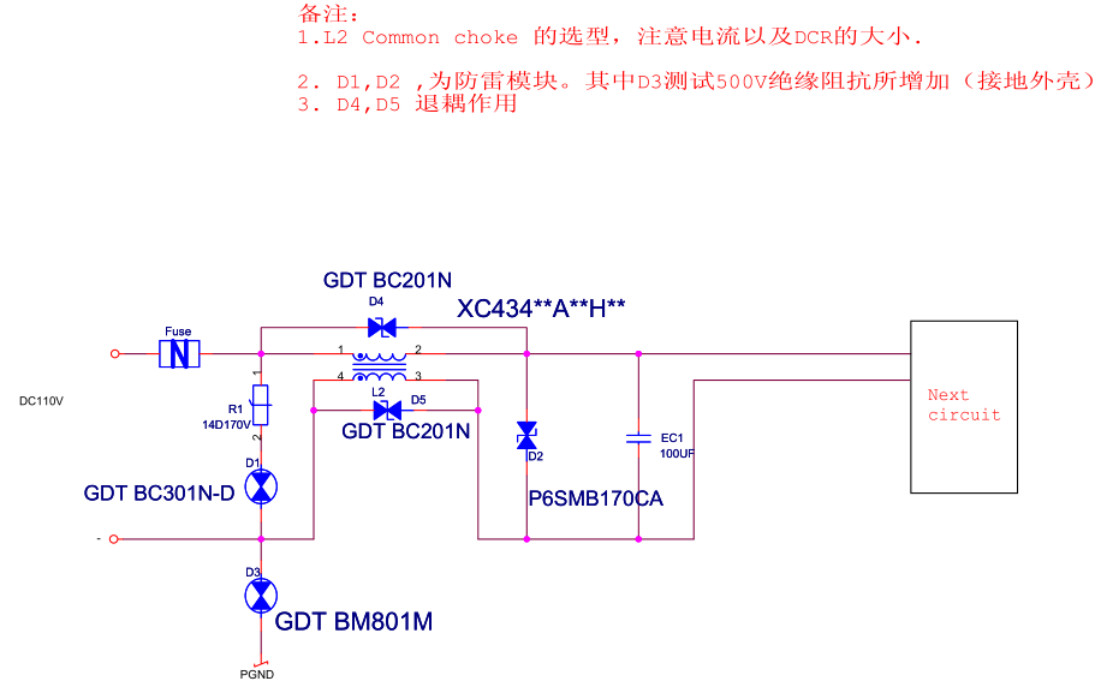

<p><strong>9、DC110V接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="5eb156f8-b9aa-46a0-ae54-4db1349191e6" height="487" src="/sites/default/files/inline-images/9_52.jpg" width="817" /></p>
<p><strong>10、DVI EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="9a207d4a-cc7a-47b8-874a-dffb92cd5a9a" height="487" src="/sites/default/files/inline-images/10_46.jpg" width="817" /></p>

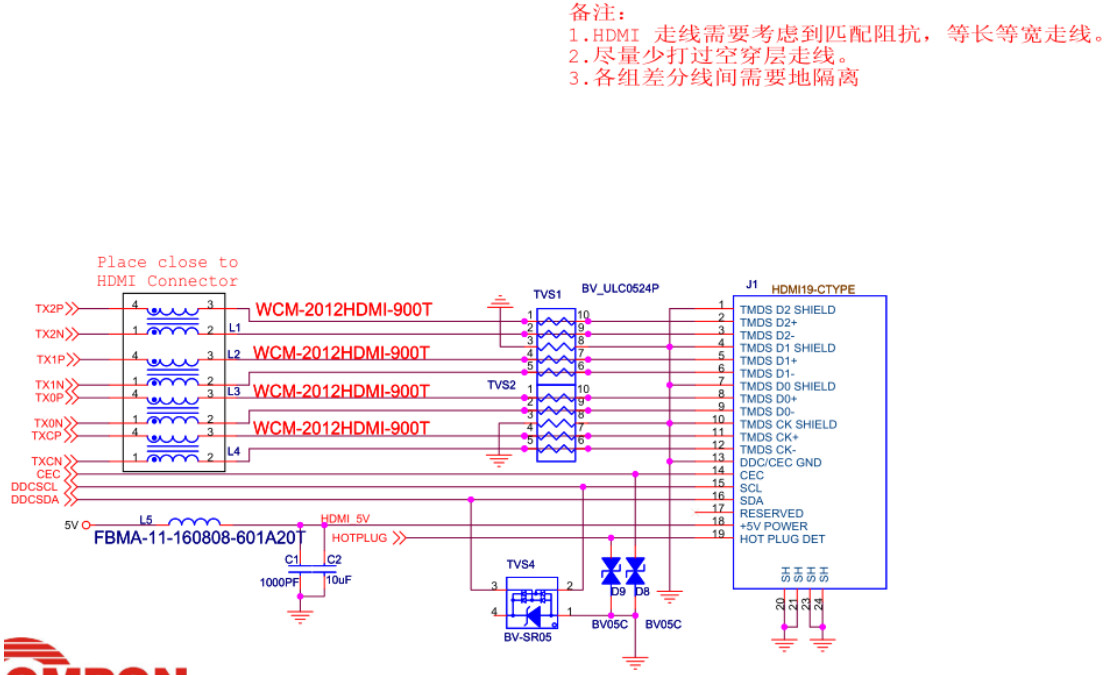

<p><strong>11、HDMI接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="10518635-fadb-47ff-b562-43c0095dc1b5" height="487" src="/sites/default/files/inline-images/11%E2%80%98%E2%80%99.jpg" width="817" /></p>

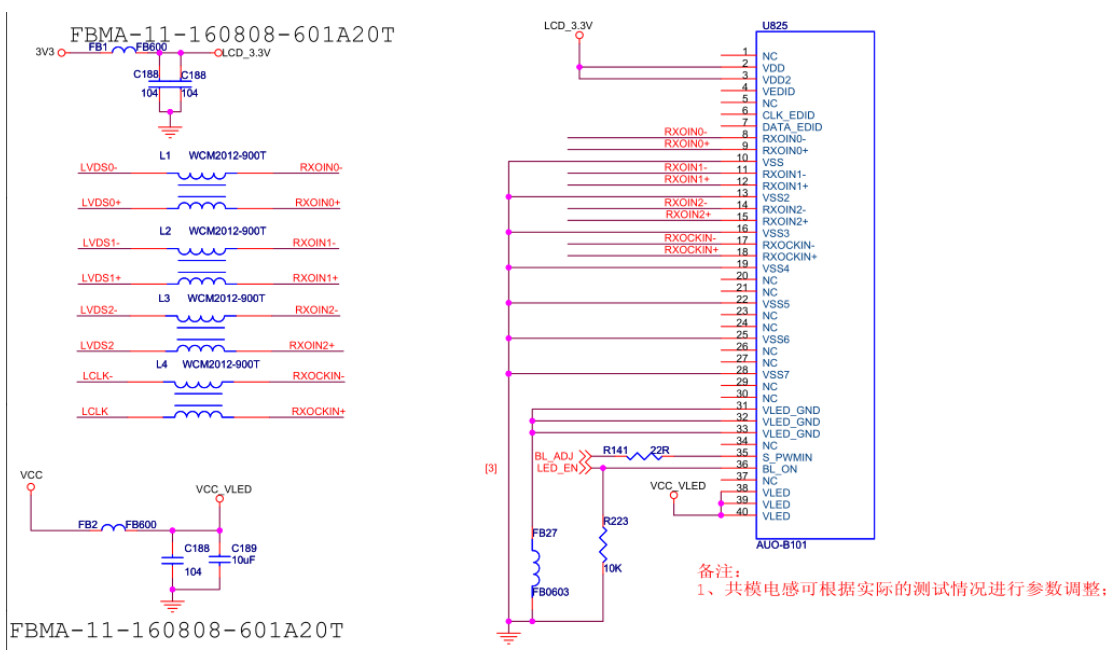

<p><strong>12、LVDS接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="43edcdac-cb7a-4a2d-a34f-0b5cb46a0703" height="487" src="/sites/default/files/inline-images/12_34.jpg" width="817" /></p>

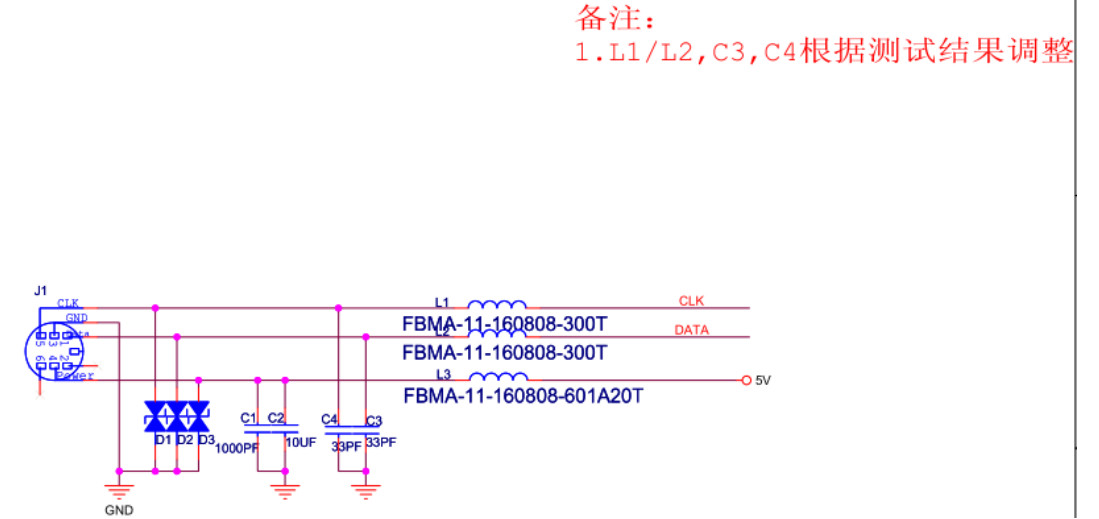

<p><strong>13、PS2接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="f0a2b455-29aa-41e4-aa4b-3c1835e1e7b3" height="487" src="/sites/default/files/inline-images/13_29.jpg" width="817" /></p>
<p><strong>14、RJ11EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="06bc4d23-4d65-4e7f-a427-226c0d6baf5e" height="487" src="/sites/default/files/inline-images/14_23.jpg" width="817" /></p>
<p><strong>15、RS232 EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="43c20d6e-9e3f-49cb-b76b-c59125ede3da" height="487" src="/sites/default/files/inline-images/15%E2%80%98%E2%80%99.jpg" width="817" /></p>

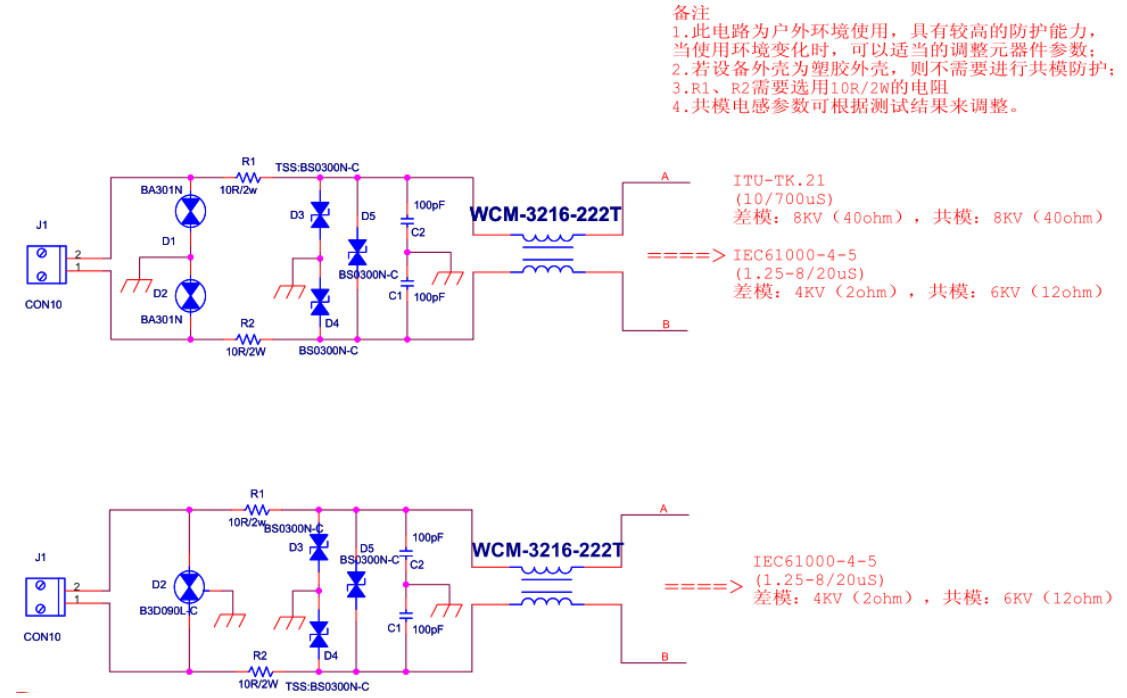

<p><strong>16、RS485EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="eabb752c-4832-4a59-ba62-41e7cc227692" height="487" src="/sites/default/files/inline-images/16_18.jpg" width="817" /></p>

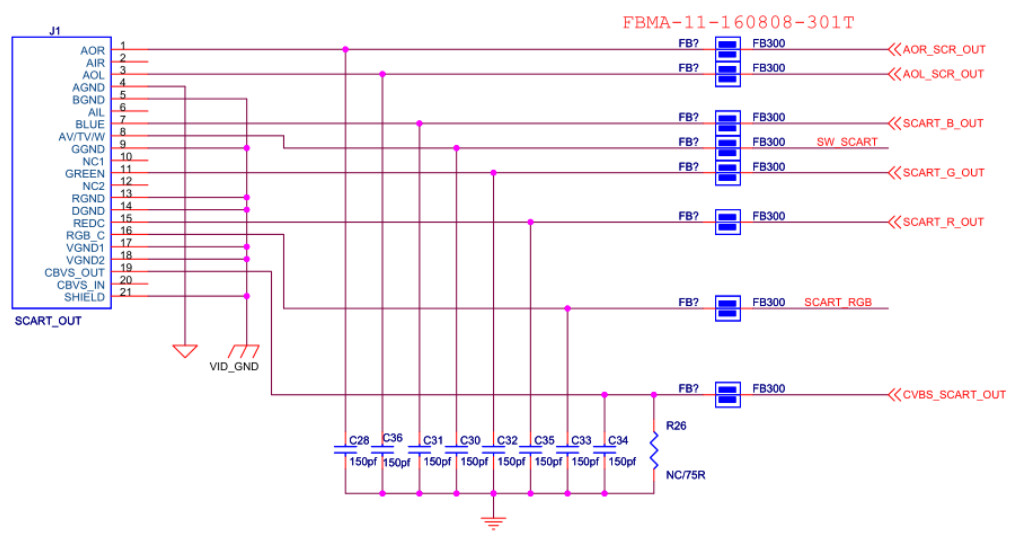

<p><strong>17、SCART接口EMC设计标准电路</strong></p>
<p><strong><img alt="1" data-entity-type="file" data-entity-uuid="f193224f-babd-4b34-9f14-e4d9dfc63c42" height="487" src="/sites/default/files/inline-images/17_14.jpg" width="817" /></strong></p>

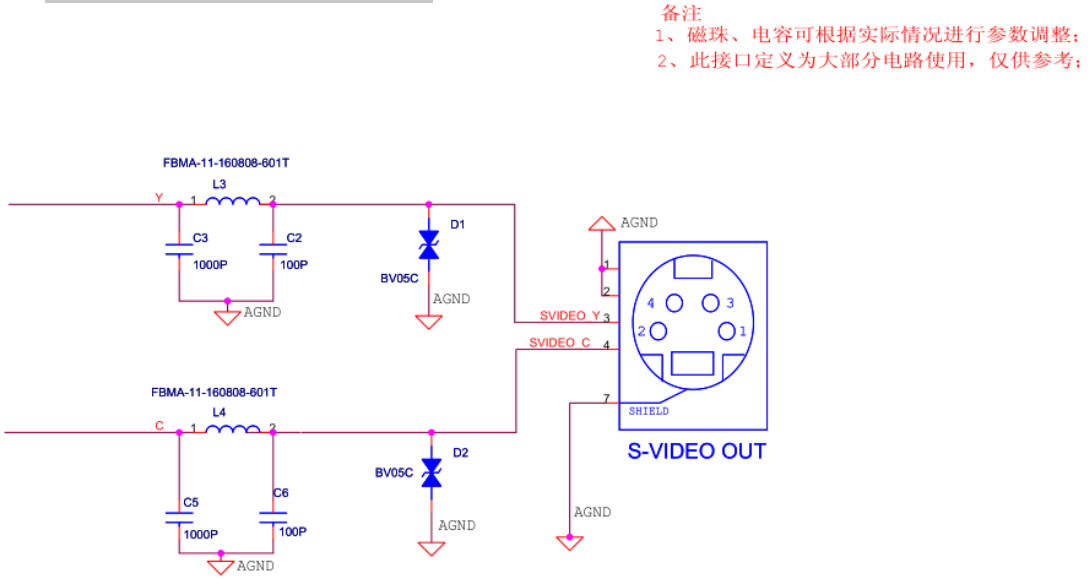

<p><strong>18、s-video接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="83f4be4b-ee58-4fac-af76-02d17af86e11" height="487" src="/sites/default/files/inline-images/18_13.jpg" width="817" /></p>

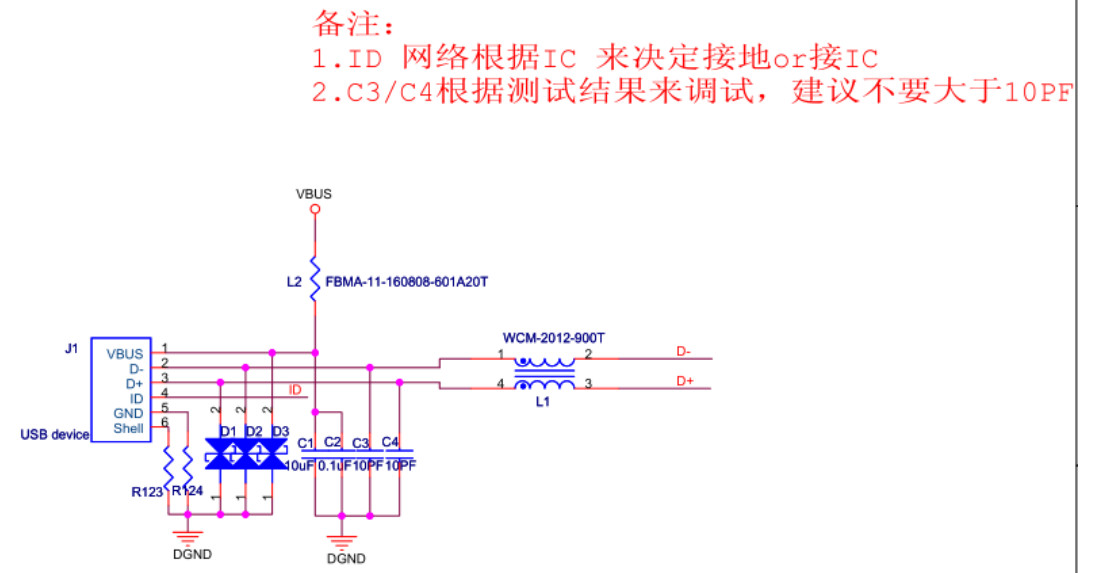

<p><strong>19、USB DEVICE EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="4cd17a73-ddd9-413d-b8d4-5e3b44be1b4c" height="487" src="/sites/default/files/inline-images/19_12.jpg" width="817" /></p>

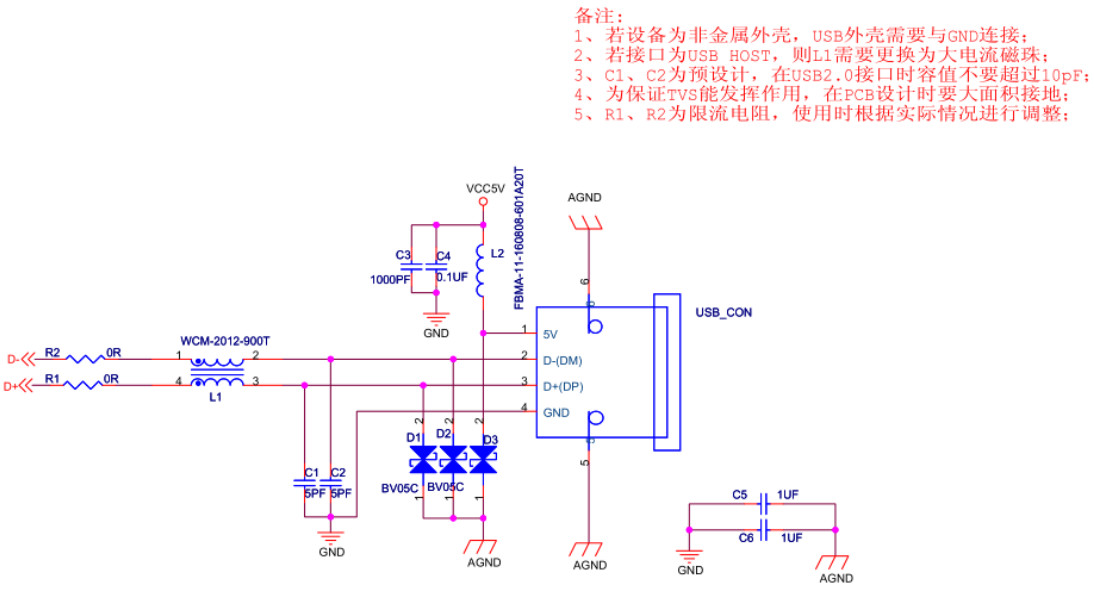

<p><strong>20、USB2.0接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="437be864-e96e-4cba-ab74-c25d638a87a1" height="487" src="/sites/default/files/inline-images/20_10.jpg" width="817" /></p>

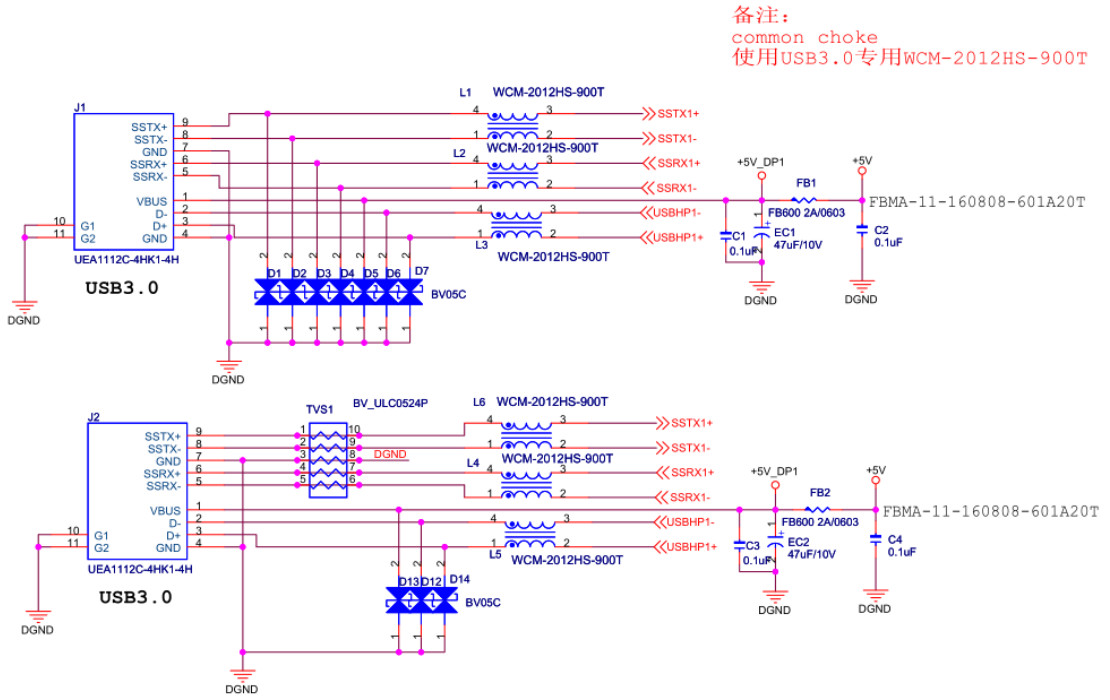

<p><strong>21、USB3.0接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="8f4b1e02-4fbb-452c-ae22-7b8e195a0114" height="487" src="/sites/default/files/inline-images/21_9.jpg" width="817" /></p>

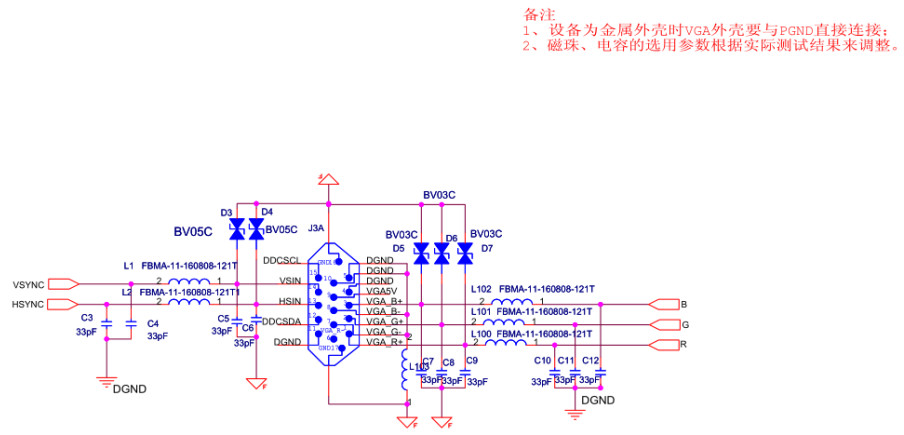

<p><strong>22、VGA接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="7f08dc03-f475-41f4-96e2-7d4dd15e99fe" height="487" src="/sites/default/files/inline-images/22_5.jpg" width="817" /></p>

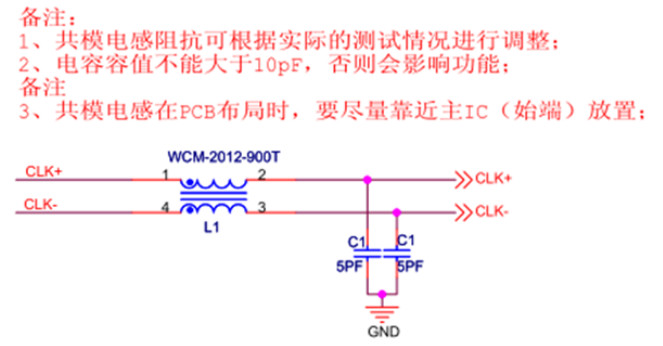

<p><strong>23、差分时钟EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="43eef321-e0c8-479d-ba0a-8c8485182d10" height="487" src="/sites/default/files/inline-images/23_7.jpg" width="817" /></p>
<p><strong>24、耳机接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="34cb781b-e359-4df3-932d-df628c1b582a" height="487" src="/sites/default/files/inline-images/24_7.jpg" width="817" /></p>
<p><strong>25、复合视频接口EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="464ce04f-44f9-42d7-b91b-1a75d98788c6" height="487" src="/sites/default/files/inline-images/25_3.jpg" width="817" /></p>

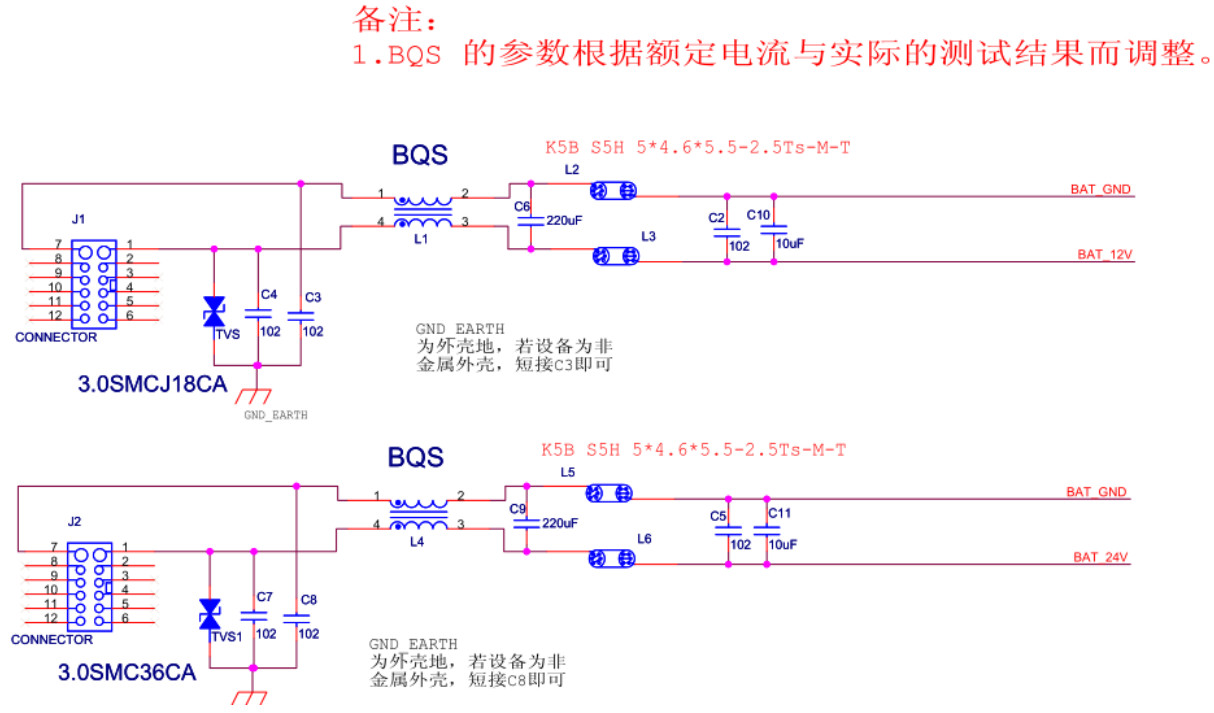

<p><strong>26、汽车零部件电源口EMC标准设计电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="e61a12dd-e596-4546-a9a9-04cbe7f1d7a7" height="487" src="/sites/default/files/inline-images/26_5.jpg" width="817" /></p>
<p><strong>27、室内外天馈浪涌设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="6a40830c-4cc0-4bc8-8e91-c01e21c6077e" height="487" src="/sites/default/files/inline-images/27_2.jpg" width="817" /></p>
<p><strong>28、无源晶振EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="4dbc07ee-b8e8-4e23-ae6d-e6b95df15e2e" height="487" src="/sites/default/files/inline-images/28_3.jpg" width="817" /></p>
<p><strong>29、有源晶振EMC设计标准电路</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="aae28c5a-061b-4105-8552-8f7454b298b7" height="487" src="/sites/default/files/inline-images/29_3.jpg" width="817" /></p>
<p> (1)以太网EMC(EMI)设计标准电路</p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="58df1b6d-1d0d-4d8b-9486-9b737ebe3b6e" height="487" src="/sites/default/files/inline-images/30_2.jpg" width="817" /></p>

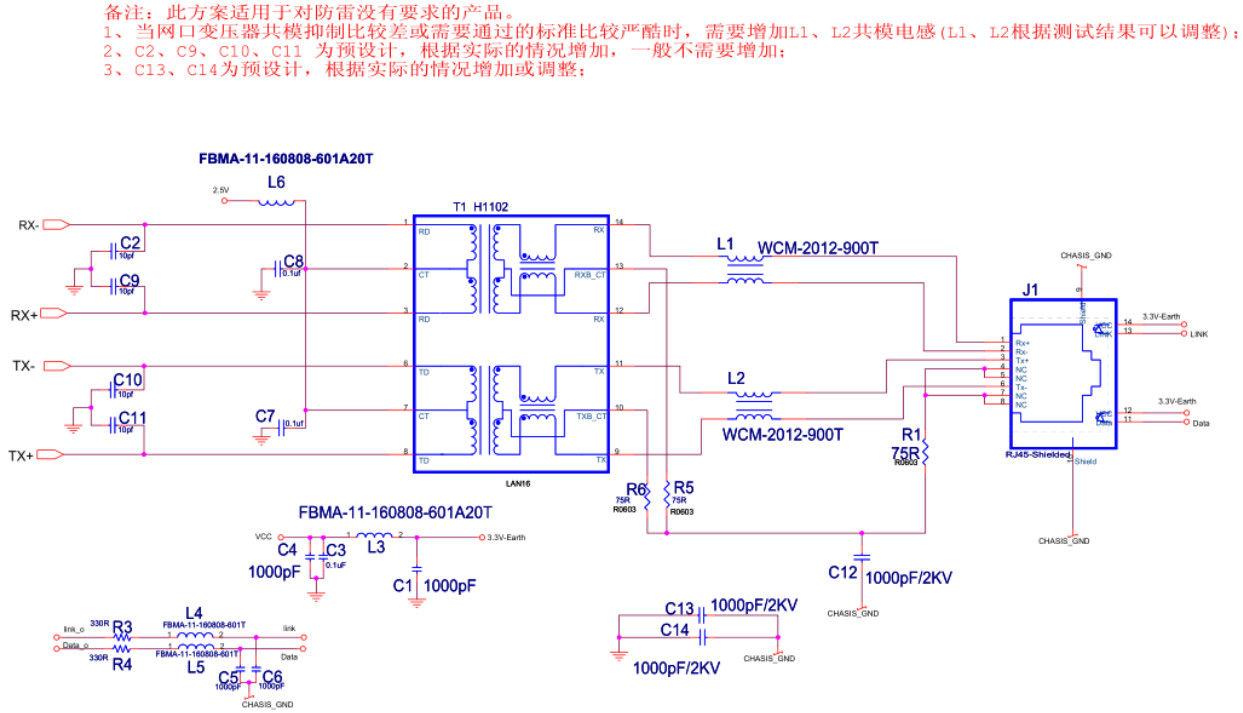

<p><strong>30、以太网EMC（浪涌）设计标准电路(差模要求较高方案）</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="cc459503-250b-42f7-bd38-c094cdc4b960" height="487" src="/sites/default/files/inline-images/31_4.jpg" width="817" /></p>

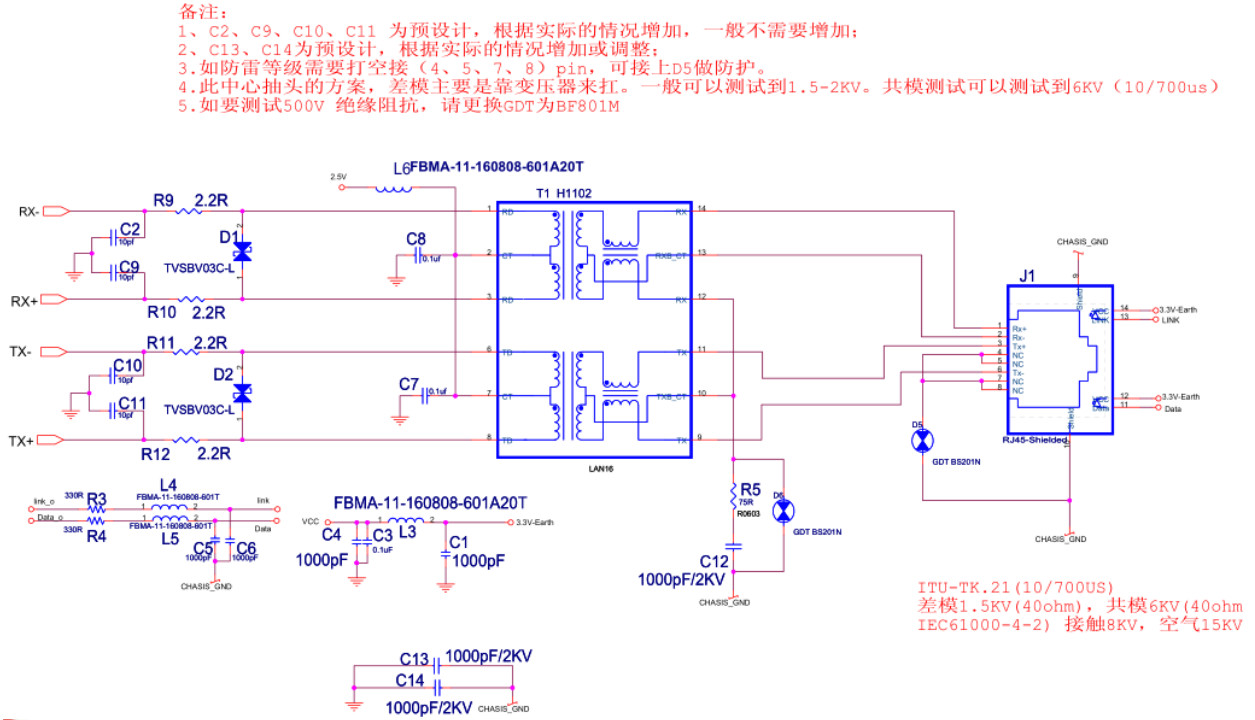

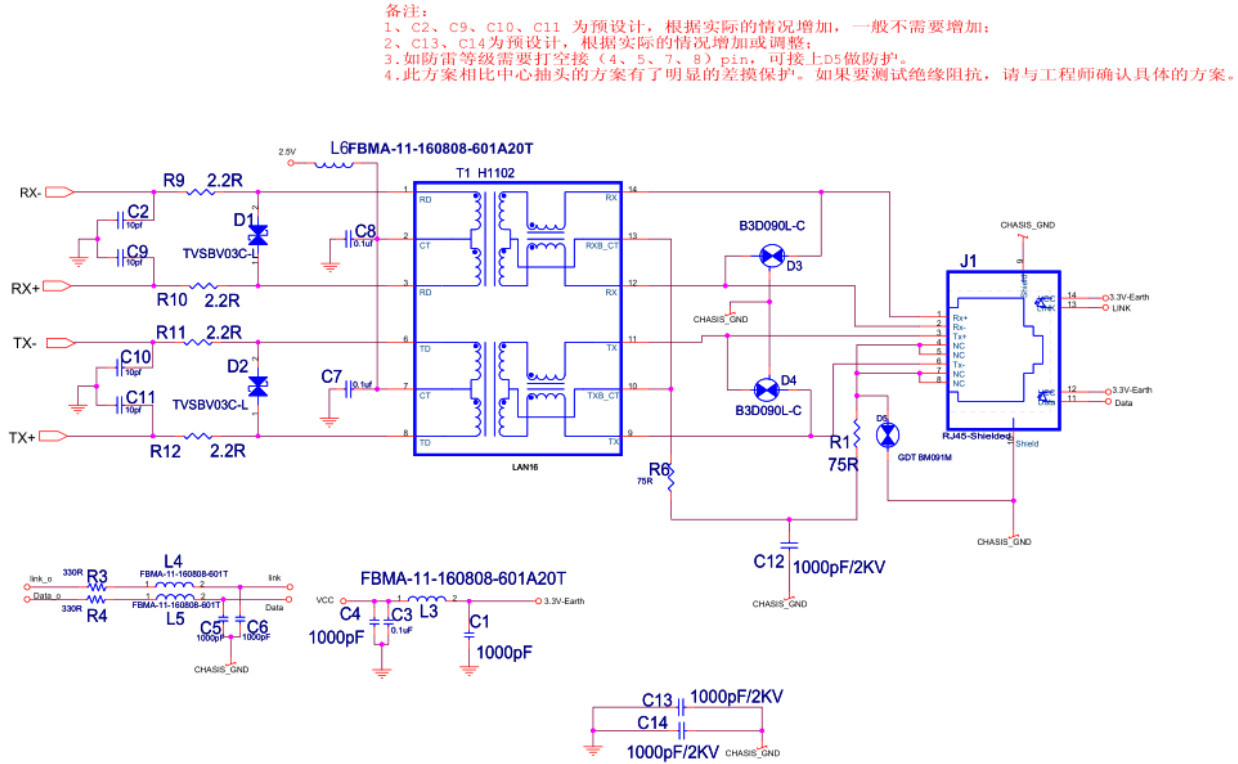

<p><strong>31、以太网EMC(浪涌）中心抽头方案（节约空间）</strong></p>
<p><img alt="1" data-entity-type="file" data-entity-uuid="dc9c5eca-83f6-4d2e-a5be-914658fb58f1" height="487" src="/sites/default/files/inline-images/32_3.jpg" width="817" /></p>
