<p>本文罗列了最全电气工程符号，分类如下：</p>
<blockquote>
<p>1. 导体和连接体</p>
<p>2. 基本无源元件</p>
<p>3. 半导体管和电子管</p>
<p>4. 电能发生和转换</p>
<p>5. 开关、控制和保护器</p>
<p>6. 测量仪表、灯和信号</p>
</blockquote>
<p> <br />

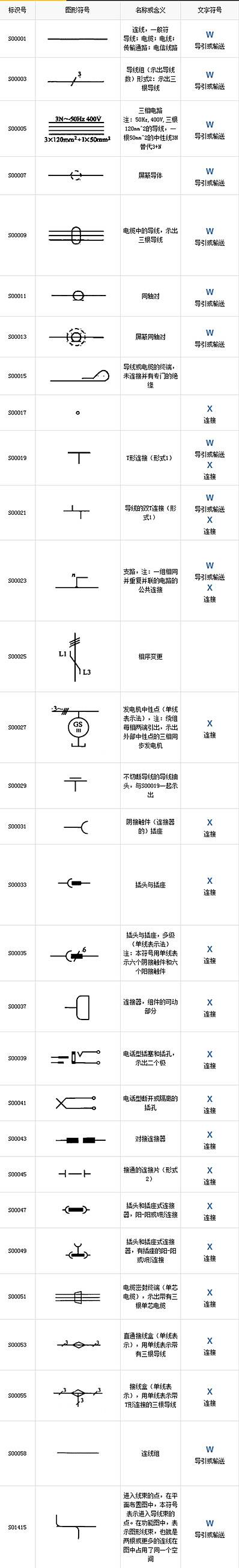

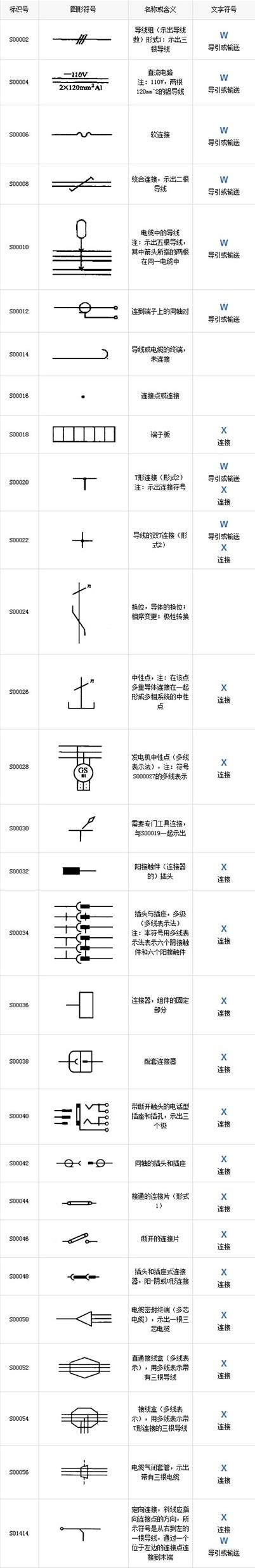

<strong>1. 导体和连接体</strong></p>
<p><strong><img alt="导体和连接体1" data-entity-type="file" data-entity-uuid="6f9749e7-2a05-4cf6-8d99-b9162a367b72" src="/sites/default/files/inline-images/%E7%94%B5%E6%B0%94%E7%AC%A6%E5%8F%B7.png" /></strong></p>
<p><img alt="导体和连接体2" data-entity-type="file" data-entity-uuid="20edcd82-416f-4d87-b40c-c2dc402e4dbc" src="/sites/default/files/inline-images/%E7%94%B5%E6%B0%94%E7%AC%A6%E5%8F%B72.png" /></p>

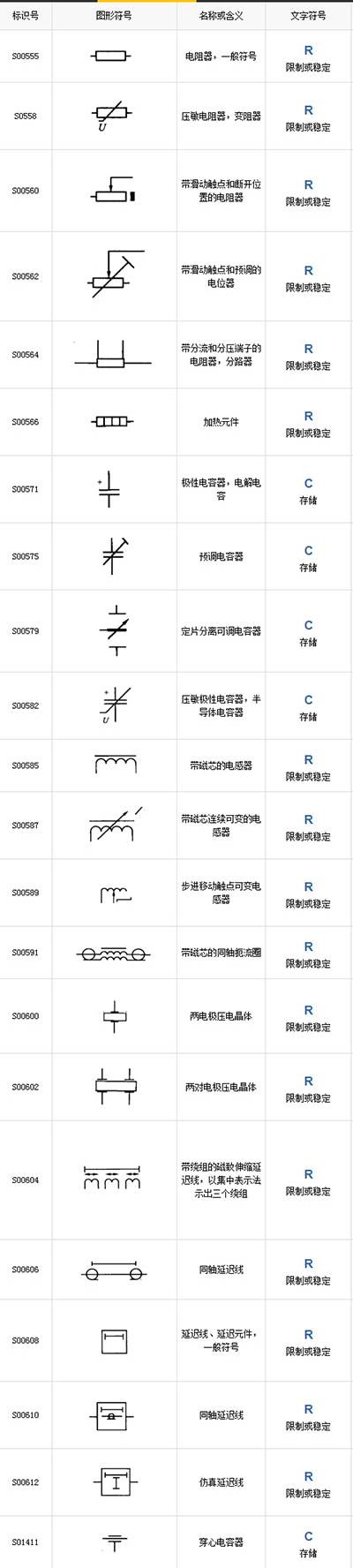

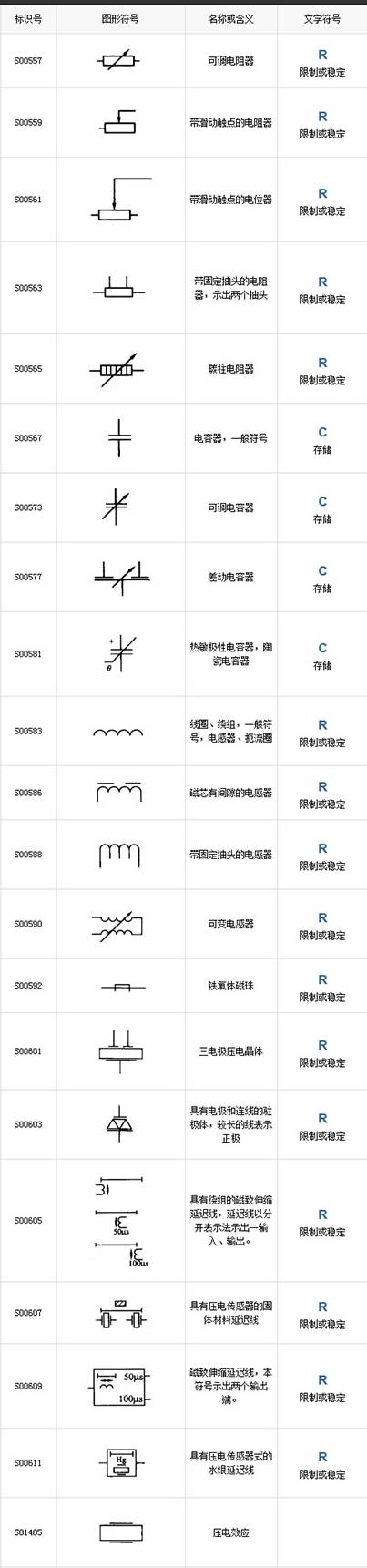

<p><strong>2. 基本无源元件</strong></p>
<p><strong><img alt="基本无源元件1" data-entity-type="file" data-entity-uuid="2f0c9f5b-4b2d-48fc-83f8-2ef28fcca179" src="/sites/default/files/inline-images/%E5%9F%BA%E6%9C%AC%E6%97%A0%E6%BA%90%E5%85%83%E4%BB%B6.png" /></strong></p>
<p><img alt="基本无源元件2" data-entity-type="file" data-entity-uuid="cbd8e9a9-17e3-4909-a42c-544345f1f0c7" src="/sites/default/files/inline-images/%E5%9F%BA%E6%9C%AC%E6%97%A0%E6%BA%90%E5%85%83%E4%BB%B62.png" /></p>

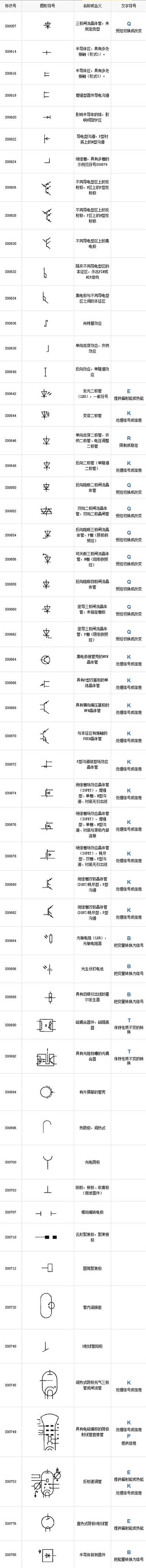

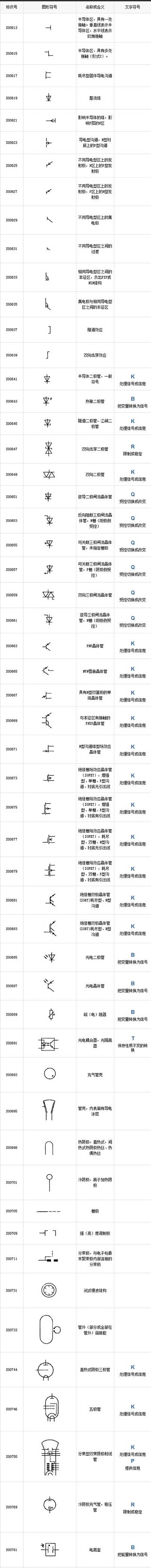

<p><strong>3. 半导体管和电子管</strong></p>
<p><strong><img alt="半导体管和电子管" data-entity-type="file" data-entity-uuid="6cd5d54a-574f-4a8d-9475-1c34f382f4ac" src="/sites/default/files/inline-images/%E5%8D%8A%E5%AF%BC%E4%BD%93%E7%AE%A1%E5%92%8C%E7%94%B5%E5%AD%90%E7%AE%A1_0.png" /></strong></p>
<p><img alt="半导体管和电子管2" data-entity-type="file" data-entity-uuid="bc059ffd-2917-4326-82f1-53a6ed1a9901" src="/sites/default/files/inline-images/%E5%8D%8A%E5%AF%BC%E4%BD%93%E7%AE%A1%E5%92%8C%E7%94%B5%E5%AD%90%E7%AE%A12.png" /></p>

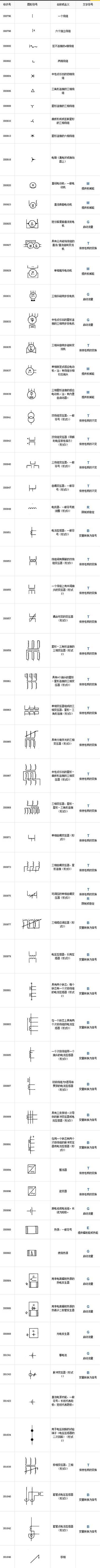

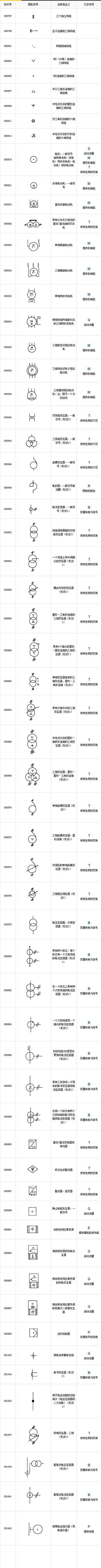

<p><strong>4.电能发生和转换</strong></p>
<p><strong><img alt="电能发生和转换1" data-entity-type="file" data-entity-uuid="f9ccc9e4-940d-4077-b97f-ddd9b895c1c0" src="/sites/default/files/inline-images/%E7%94%B5%E8%83%BD%E5%8F%91%E7%94%9F%E5%92%8C%E8%BD%AC%E6%8D%A2.png" /></strong></p>
<p><img alt="电能发生和转换2" data-entity-type="file" data-entity-uuid="069e8539-cad2-4a6d-a079-82d854935649" src="/sites/default/files/inline-images/%E7%94%B5%E8%83%BD%E5%8F%91%E7%94%9F%E5%92%8C%E8%BD%AC%E6%8D%A22.png" /></p>

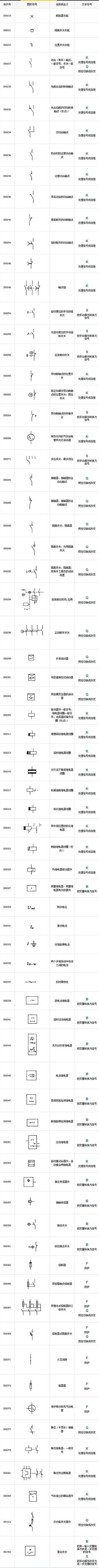

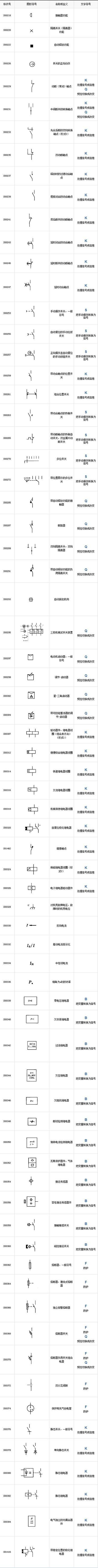

<p><strong>5. 开关、控制和保护器</strong></p>
<p><strong><img alt="开关、控制和保护器1" data-entity-type="file" data-entity-uuid="eb5b7925-3507-4cfd-8e9c-d5f3ca815449" src="/sites/default/files/inline-images/%E5%BC%80%E5%85%B3%E3%80%81%E6%8E%A7%E5%88%B6%E5%92%8C%E4%BF%9D%E6%8A%A4%E5%99%A8.png" /></strong></p>
<p><img alt="开关、控制和保护器2" data-entity-type="file" data-entity-uuid="bb337291-0c59-4c67-9507-326923d7a2e8" src="/sites/default/files/inline-images/%E5%BC%80%E5%85%B3%E3%80%81%E6%8E%A7%E5%88%B6%E5%92%8C%E4%BF%9D%E6%8A%A4%E5%99%A82.png" /></p>
<p> </p>
<p><strong>6. 测量仪表、灯和信号</strong></p>
<p><strong><img alt="测量仪表、灯和信号1" data-entity-type="file" data-entity-uuid="56da0655-2b7e-41c7-9c01-03e08f36d172" src="/sites/default/files/inline-images/%E6%B5%8B%E9%87%8F%E4%BB%AA%E8%A1%A8%E3%80%81%E7%81%AF%E5%92%8C%E4%BF%A1%E5%8F%B7_0.png" /></strong></p>
<p><img alt="测量仪表、灯和信号2" data-entity-type="file" data-entity-uuid="bfeeeffb-1868-467c-9165-758672e9a670" src="/sites/default/files/inline-images/%E6%B5%8B%E9%87%8F%E4%BB%AA%E8%A1%A8%E3%80%81%E7%81%AF%E5%92%8C%E4%BF%A1%E5%8F%B72.png" /></p>
<p>文章转载自：<a href="http://www.rfsister.com/article/23627865.html">rfsister</a></p>
